CNC lathes for metal
Three lathe families for every type of part and workshop: flat bed for long and large-diameter parts, slant bed for complex parts in a single clamping, and cycle-controlled lathes for working without ISO programming.
Parts over Ø1,300 mm or several metres long? Heavy-duty lathes → · Compare the three families → · Choose by capacity · With live tooling
- Factory-owned technical service
- Stock in Spain
- Grupo Ferrotall, Monforte del Cid (Alicante, Spain)
01 — Flat bed
Flat bed CNC lathes
Flat bed CNC lathes with ø410 to ø800 mm swing and 750 to 4,000 mm between centres, for shafts and long or large-diameter parts. Fagor 8060 Elite control on most models and versions with live tooling (PL-61M and PLM-50).
- 24 models
- Up to ø800 mm
- Up to 4,000 mm between centres
Flat-Bed CNC Lathe Vurcon PL-36x 1000
View details →
Flat-Bed Lathe Vurcon PL-50x2000
View details →
Flat-Bed CNC Lathe with Live Tooling Vurcon PL-61Mx2000
View details →
Flat-Bed Lathe Vurcon PL-80x2000
View details →02 — Slant bed
Slant bed CNC lathes
30°/45° slant bed, which improves chip evacuation and operator access, with a 12-station live-tool turret, C axis and Fanuc 0i-TF Plus control. Versions with Y axis and sub-spindle to turn, mill and drill in a single clamping.
- 6 models
- Up to ø650 mm
- Live-tool turret · C axis
Slant-Bed Lathe SBL66MY

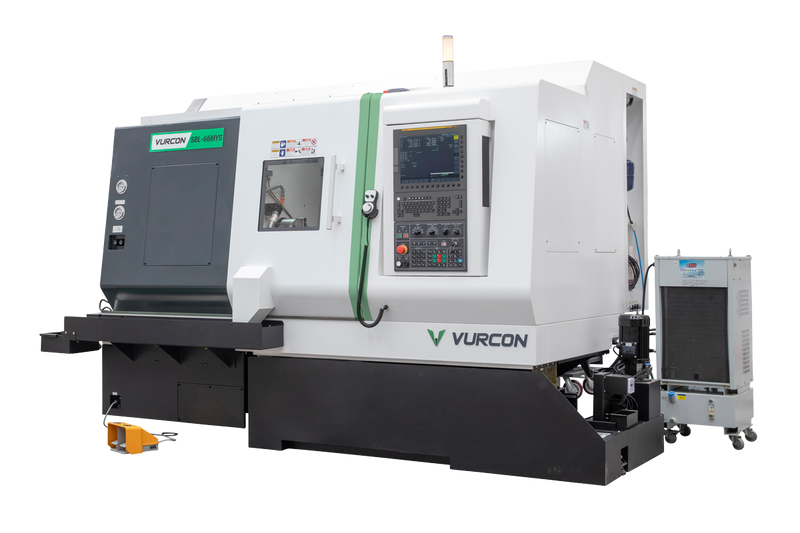

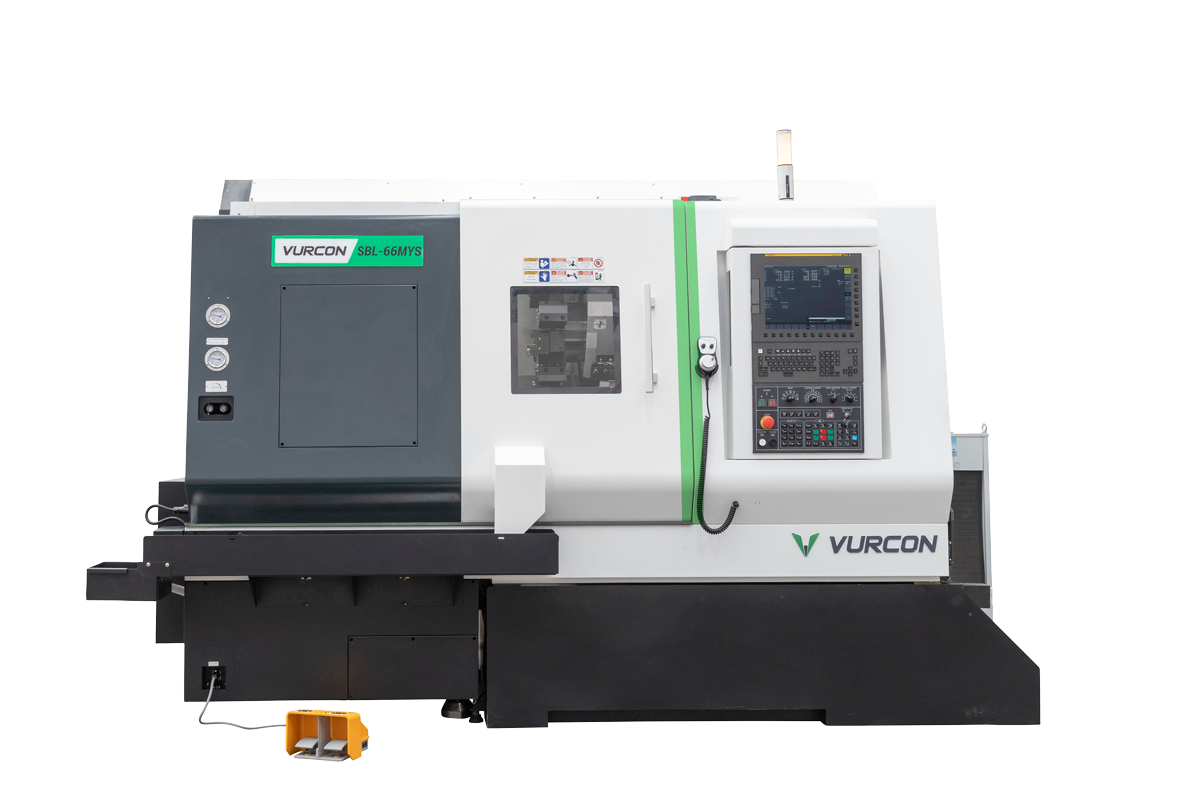

View details →Slant-Bed Lathe SBL66MYS
View details →

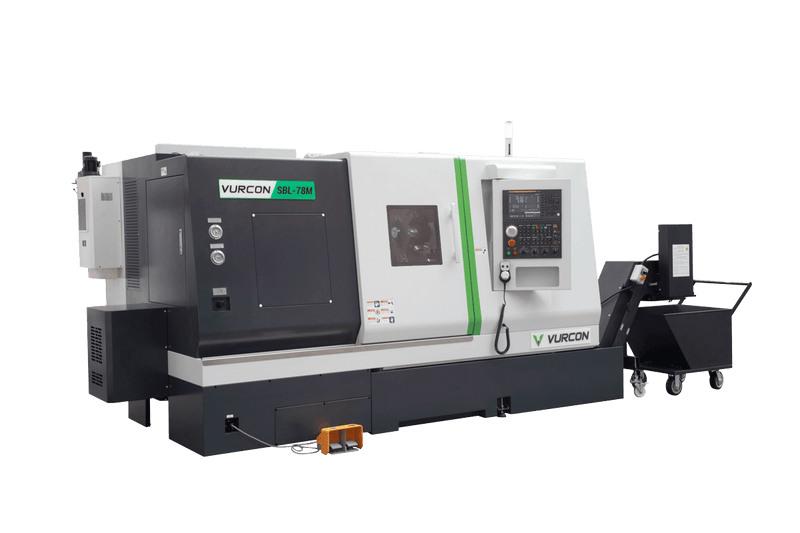

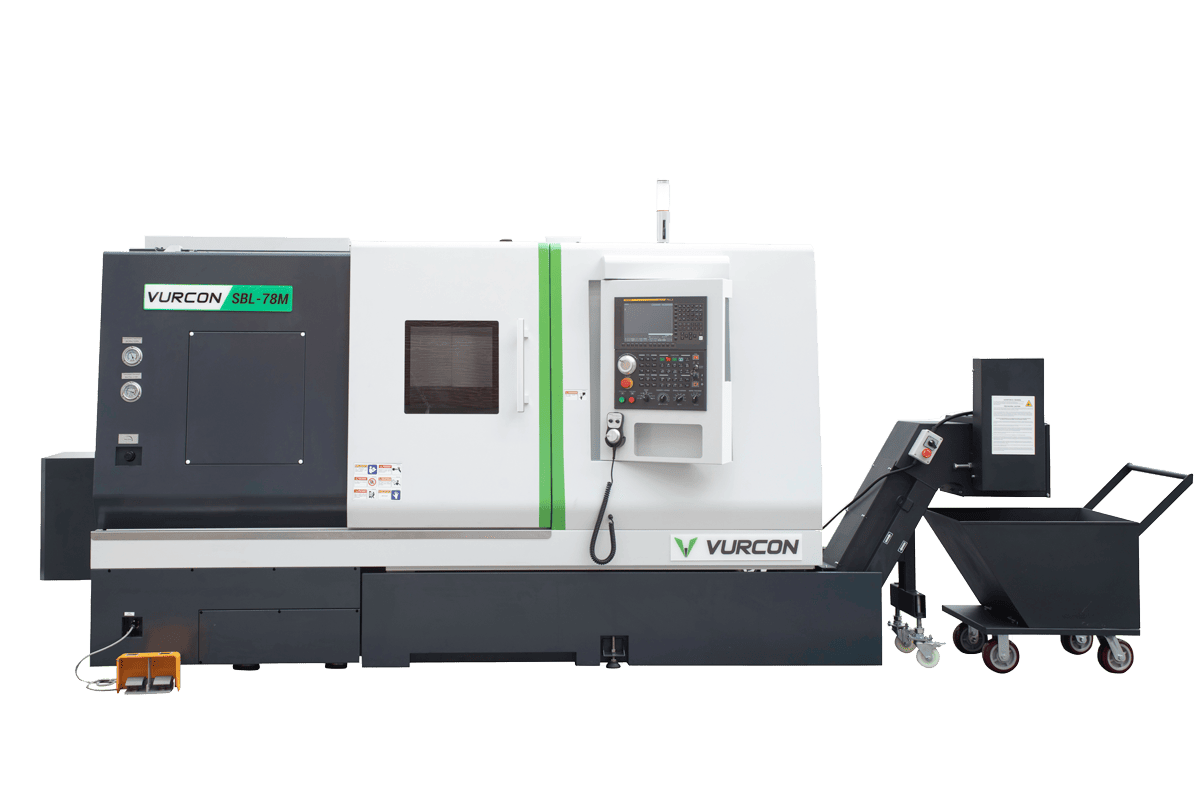

Slant-Bed Lathe SBL78M
View details →

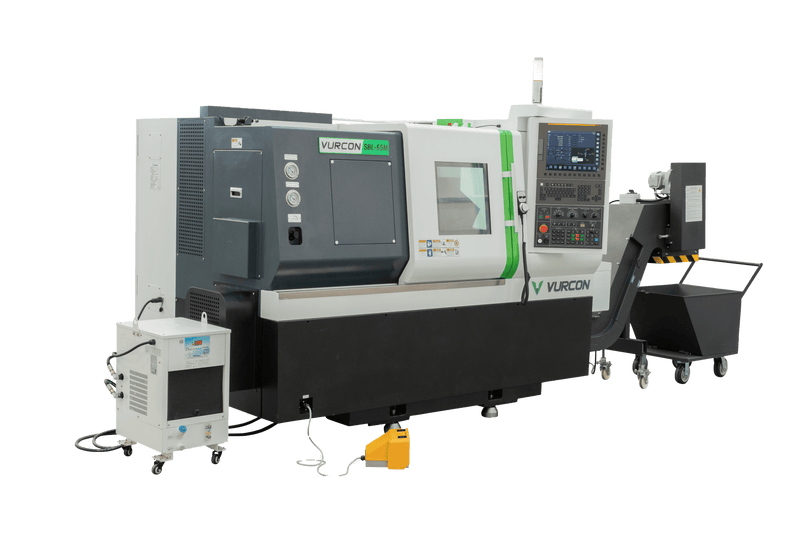

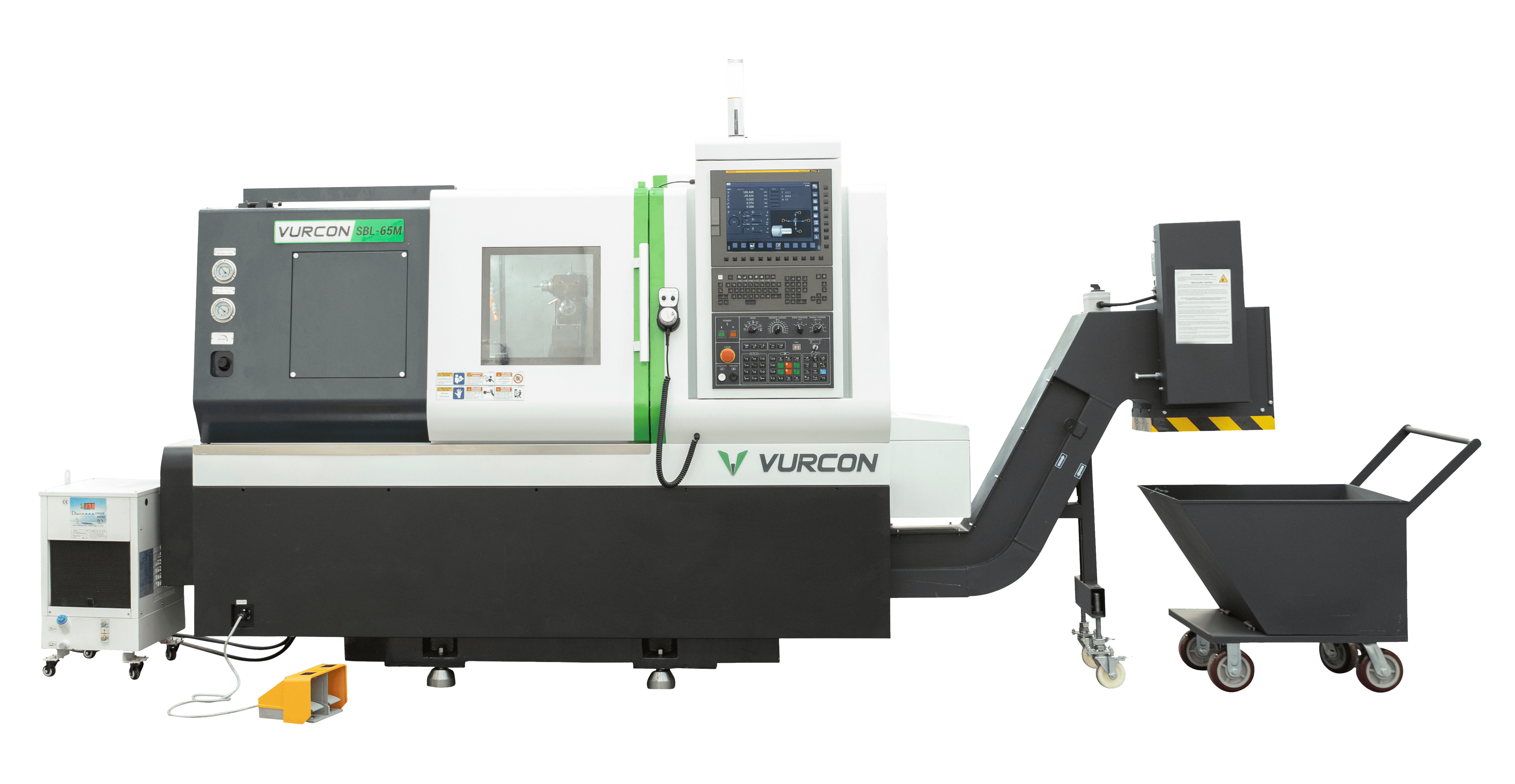

Slant-Bed Lathe SBL65M
View details →03 — Cycle control
Cycle-controlled electronic lathes
Flat bed lathes operated with handwheels, like a conventional lathe. Turning, facing, threading and copying cycles are set on a touch screen (Teach-In), without writing ISO code: you start the way you have always worked.
- 13 models
- Up to ø800 mm
- Up to 5,000 mm between centres
Electronic Flat-Bed Lathe EL 40X1000
View details →
Electronic Flat-Bed Lathe EL 50X2000
View details →
Electronic Flat-Bed Lathe EL 60X2000
View details →
Electronic Flat-Bed Lathe EL 80X3000
View details →Choose by capacity: swing × distance between centres
Find your part's maximum diameter in the rows and its length in the columns (mm). Each cell opens the model page. For larger parts, large-format lathes built to project.
| Series · swing | 750 | 1,000 | 1,500 | 2,000 | 3,000 | 4,000 | 5,000 | 8,000 |
|---|---|---|---|---|---|---|---|---|
| EL-40Ø400 · Electronic cycles | – | EL-40×1000 | – | – | – | – | – | – |
| PL-36Ø410 · CNC | PL-36×750 | PL-36×1000 | – | – | – | – | – | – |
| EL-50Ø500 · Electronic cycles | – | EL-50×1000 | EL-50×1500 | EL-50×2000 | EL-50×3000 | – | – | – |
| PL-50Ø510 · CNC | PL-50×750 | PL-50×1000 | PL-50×1500 | PL-50×2000 | PL-50×3000 | – | – | – |
| PLM-50Ø510 · CNC + live tooling | – | – | – | PLM-50×2000 | – | – | – | – |
| PL-61MØ610 · CNC + live tooling | – | PL-61M×1000 | PL-61M×1500 | PL-61M×2000 | PL-61M×3000 | – | – | – |
| PL-63Ø630 · CNC | – | PL-63×1000 | PL-63×1500 | PL-63×2000 | PL-63×3000 | PL-63×4000 | – | – |
| EL-60Ø650 · Electronic cycles | – | EL-60×1000 | EL-60×1500 | EL-60×2000 | EL-60×3000 | – | – | – |
| EL-80Ø800 · Electronic cycles | – | – | EL-80×1500 | – | EL-80×3000 | EL-80×4000 | EL-80×5000 | – |
| PL-80Ø800 · CNC | – | PL-80×1000 | PL-80×1500 | PL-80×2000 | PL-80×3000 | PL-80×4000 | – | – |
| PL140Ø1440 · Large format | – | – | – | – | – | – | PL140×5000 | – |
| PL180Ø1850 · Large format | – | – | – | – | – | – | – | PL180×8000 |
SBL slant bed: Ø520–650 mm swing and 480–1,300 mm between centres, all with live tooling → see slant bed lathes · all lathes with live tooling
Which lathe family do you need?
The three families at a glance, with data from each model's spec sheet. The final configuration is confirmed in the quotation.
| Flat bed | Slant bed | Cycle-controlled | |
|---|---|---|---|
| Swing over bed | ø410 – ø800 mm | ø520 – ø650 mm | ø400 – ø800 mm |
| Distance between centres | 750 – 4,000 mm | 480 – 1,300 mm | 1,000 – 5,000 mm |
| Control | Fagor 8060 Elite (most models) | Fanuc 0i-TF Plus | Vurcon V2.0 cycle control (Teach-In) |
| Live tooling | On PL-61M and PLM-50 | On all models (C axis) | No |
| Best for | Shafts, long and large-diameter parts | Complex parts in a single clamping and medium batches | Conventional lathe operators, one-off parts and short runs |
To request a spec sheet, a quotation or a demonstration of any model, contact the Vurcon team.
Frequently asked questions about CNC lathes
What is the difference between a flat bed and a slant bed lathe?
A flat bed lathe has horizontal guideways and reaches ø800 mm swing and 4,000 mm between centres: it is the choice for shafts and long or large-diameter parts. A 30°/45° slant bed improves chip evacuation and operator access, and with its 12-station live-tool turret and C axis it can turn, mill and drill in a single clamping.
Which lathe do I need if my operators can't program CNC?
A cycle-controlled electronic lathe. It is operated with handwheels, like a conventional lathe, and turning, facing, threading and copying cycles are set by parameters on the touch screen of the Vurcon V2.0 control (Teach-In), without writing ISO code.
Which CNC control do Vurcon lathes use?
Most flat bed lathes use Fagor 8060 Elite. Slant bed lathes use Fanuc 0i-TF Plus. Cycle-controlled lathes use the Vurcon V2.0 cycle control with a 15-inch touch screen.
Are there CNC lathes with live tooling?
Yes. All slant bed lathes have a 12-station live-tool turret and C axis, with versions with Y axis and sub-spindle. In flat bed lathes, the PL-61M and PLM-50 series.
Who provides the technical service?
Technical service is provided by the brand itself, from Monforte del Cid (Alicante, Spain): technicians who know the machine because it is their own.
Is there stock in Spain?
Many models are in stock in Spain for immediate delivery, so you can start producing sooner. Each machine's availability is shown on its page.
Not sure which lathe you need?
Tell us what parts you machine and a technician will recommend the right model.
