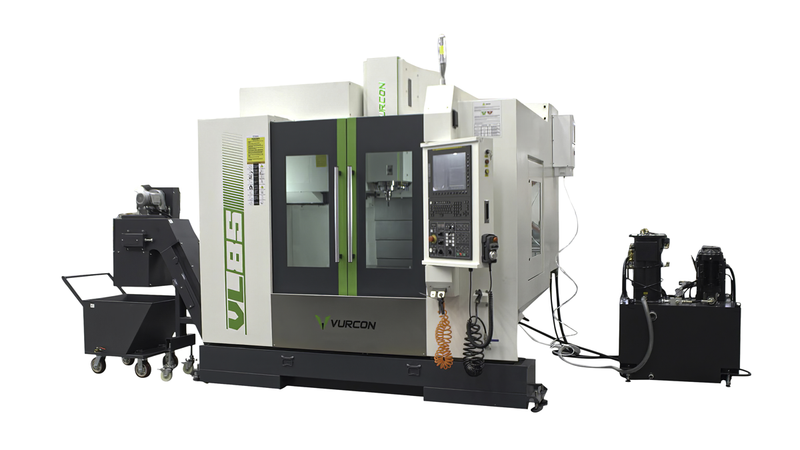

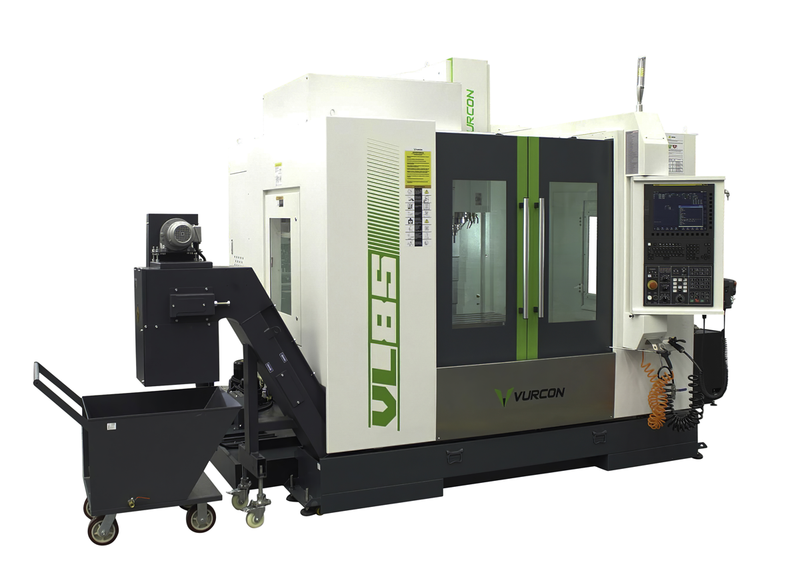

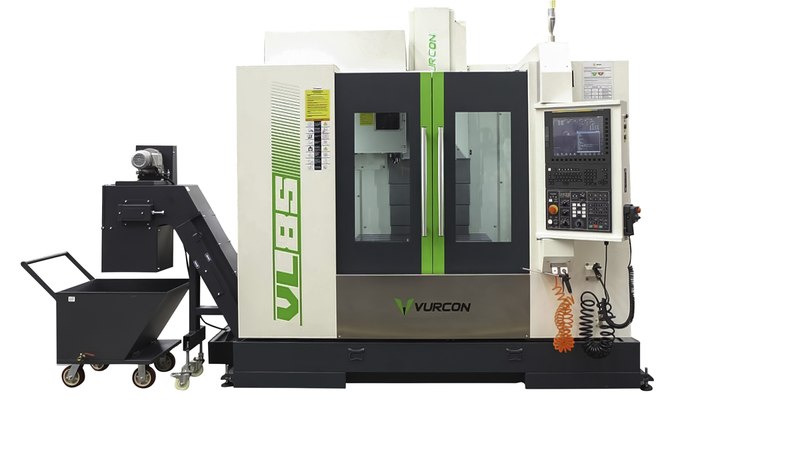

Vurcon VL-85 machining center

Vendor: Vurcon

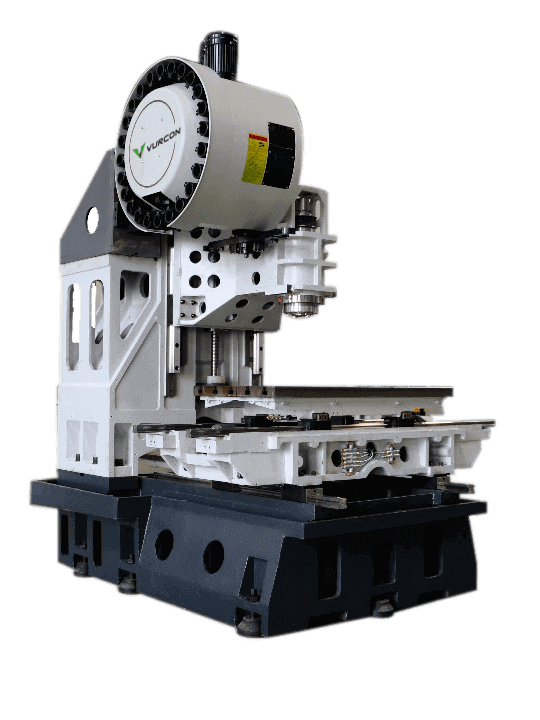

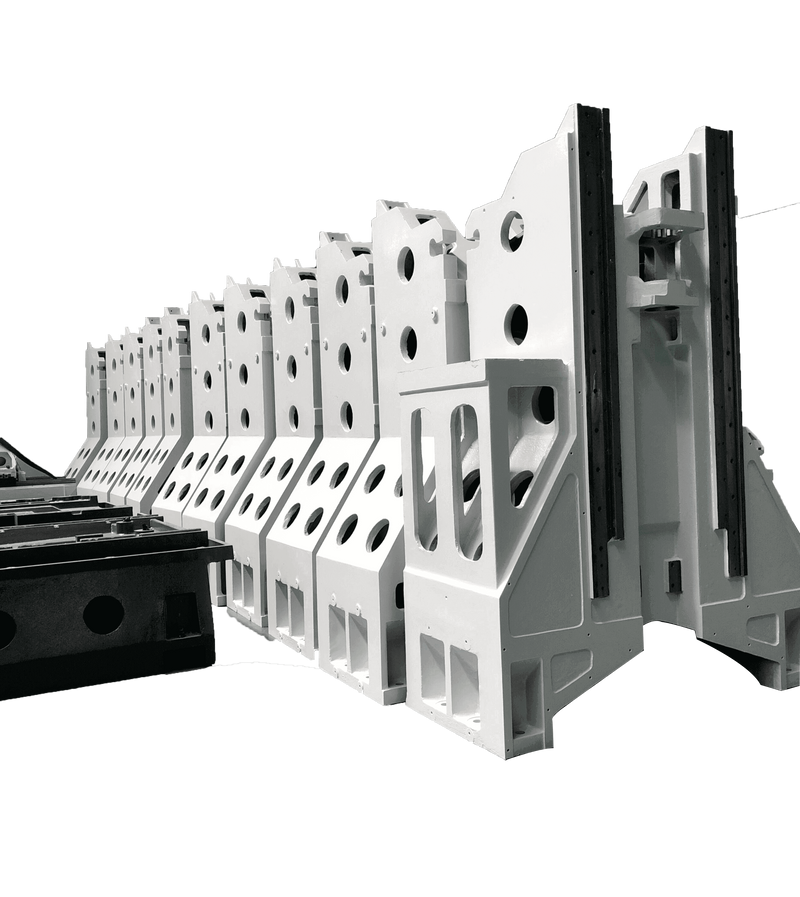

Physical characteristics

Ref.: VL85

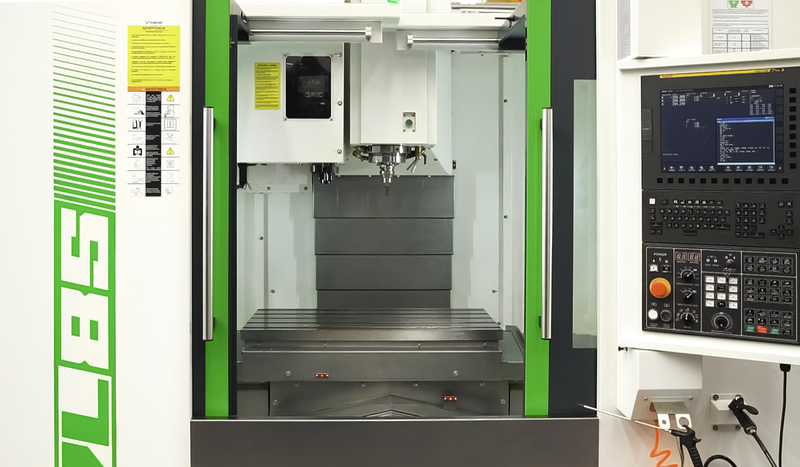

Worktable (WxL) 500x1000
X/Y/Z axis travel 850 /500 /550
Speed range 20-10000



Standard configuration

  • Fanuc 0iMF Type2 control with 15" touchscreen
  • Fanuc Manual guide I
  • Electronic handwheel
  • Rigid tapping
  • Air conditioning in the electrical cabinet

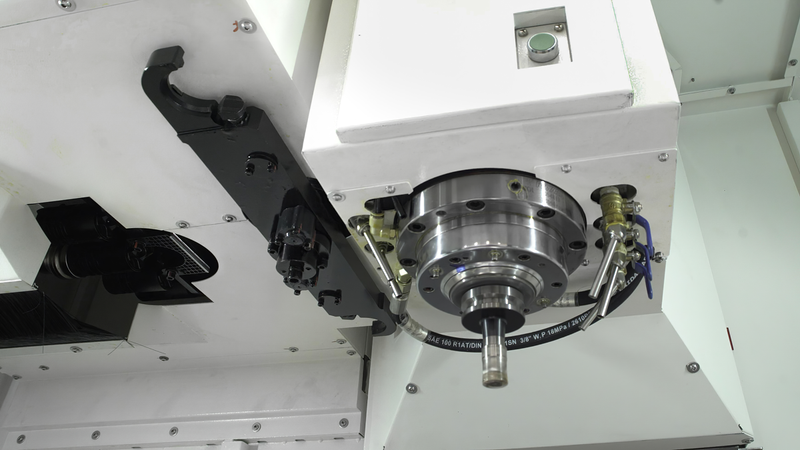

  • 10,000rpm transmission type: belts
  • Spindle power 7.5/11Kw
  • Taper type BT40 (BBT40)
  • Oil-cooled spindle
  • 24-position tool changer (Random Type)
  • Automatic lubrication system
  • Chain type chip conveyor
  • Coolant through spindle 20 bar
  • Oil/coolant separator
  • Air cleaning gun
  • Coolant cleaning gun



Data sheet



Technical data sheet

Features
Brand VURCON
Worktable (WxL) mm 500x1000
Control FANUC 0i MF
X-axis travel mm 850
Y-axis travel mm 500
Z-axis travel mm 550

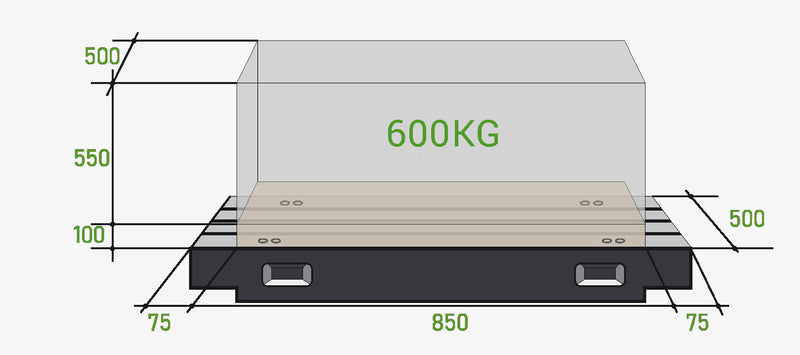

Max. load allowed on the worktable Kg 600
Spindle-table distance mm 100 - 650
T-slots mm 1-5
Slot distance mm 100
Main spindle taper BT40
Column-spindle center distance mm 582
Speed range rpm 20-10000
Main motor power in S6 kw 15
Taper balancing G1
Spindle precision mm ±0.005
Dynamic precision mm ±0.007
Standard tool holder MSA403 BT40
X-axis servo motor power kw 1.8
Y-axis servo motor power kw 1.8
Z-axis servo motor power kw 2.5
X-axis rapid traverse m/min 48
Y-axis rapid traverse m/min 48
Z-axis rapid traverse m/min 32
Working feedrate mm/min 12000
Tool magazine type Double arm
Tool changer type Random
Tool capacity pc 24
Max. tool dia. with adjacent tool mm 78
Max. dia. without adjacent tool mm 120
Max. allowable tool weight Kg 8
Max. allowable tool length mm 300
Pneumatic consumption Kg 6-8
Electric consumption Kva 20
Required power 380V±10% 50Hz
Coolant pump flow l/min 40
Optimal ambient temperature range º 0-40
Optimal ambient humidity % 20-80
Type of casing Full
Positioning accuracy X/Y/Z mm ±0.008
Repositioning accuracy X/Y/Z mm ±0.004
Dimensions mm 2460×2355×2860
Weight Kg 6000
