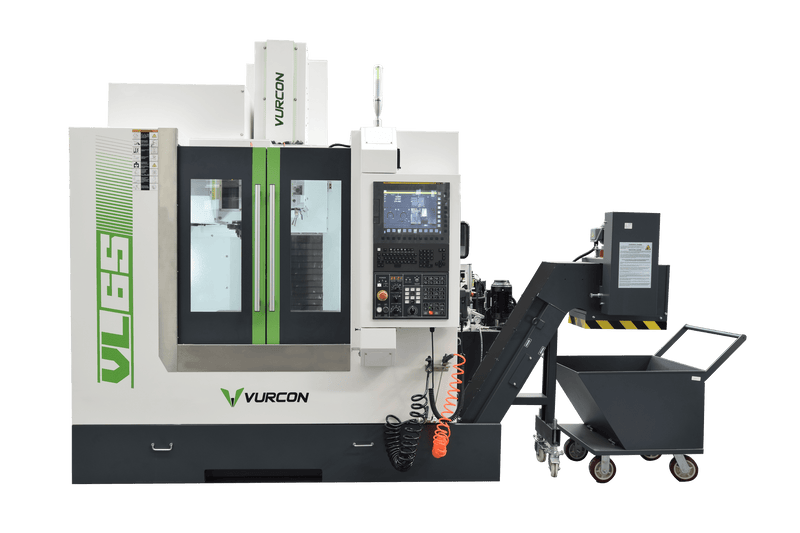

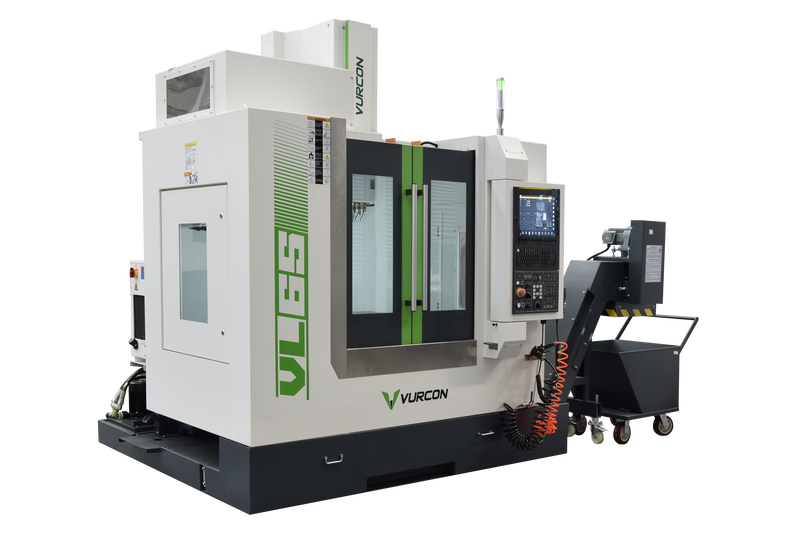

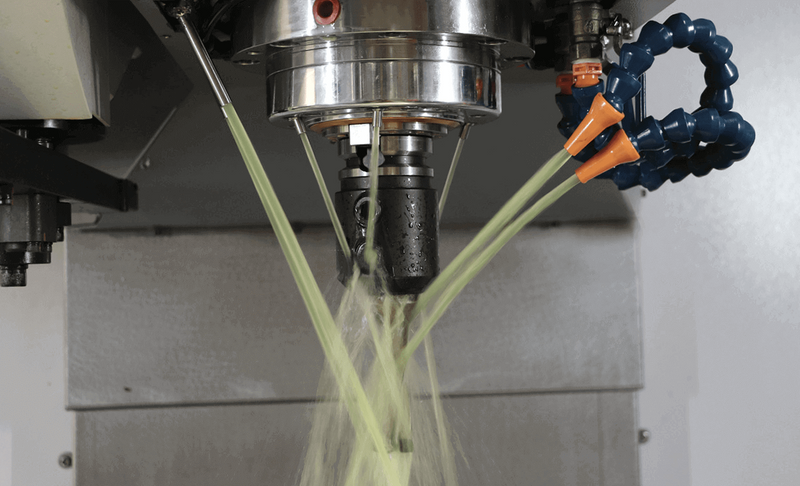

Vurcon VL-65 machining center
Physical characteristics
Ref.: VL65

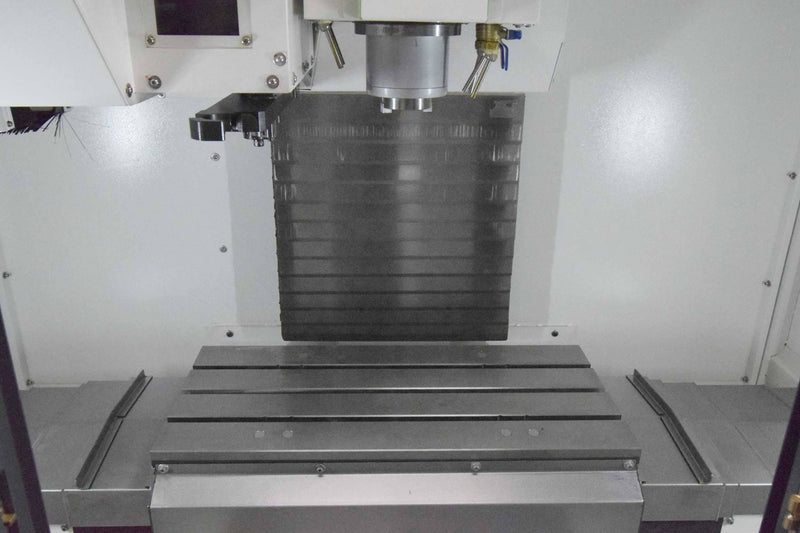

Work table (WxL) | 400x850 |
X/Y/Z axis travel | 650/400/500 |
Speed range | 20-10000 |
Standard configuration
- Skids on the X/Y/Z axes
- Pretensioned ball screws
- Rigid threading
- Workpiece Cooling System

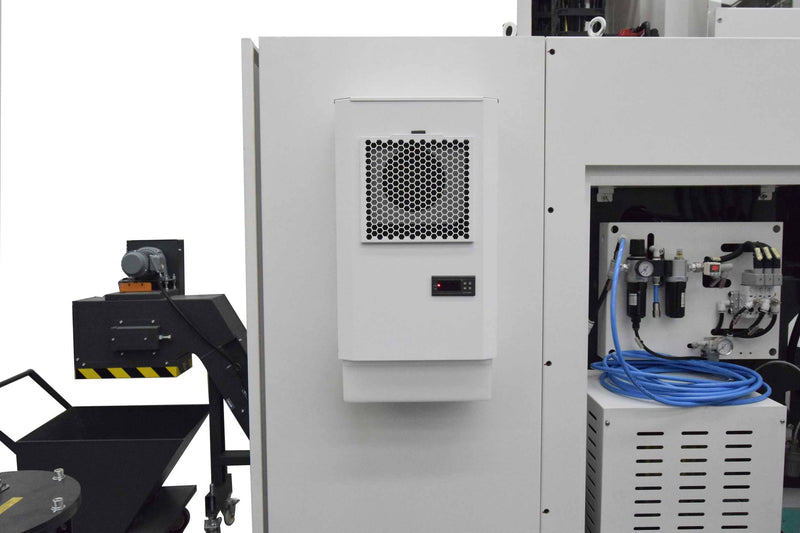

- Heat exchanger in the electrical panel
- Auto power off
- Chip sweeping
- Complete fairing
- 10.4" LCD screen
- Manual Guide i
- Oil collector guides
- Air seal on the spindle
- Automatic lubrication system
- Chain and trolley type chip extractor
- RS232 interface
- Air gun
- electronic steering wheel

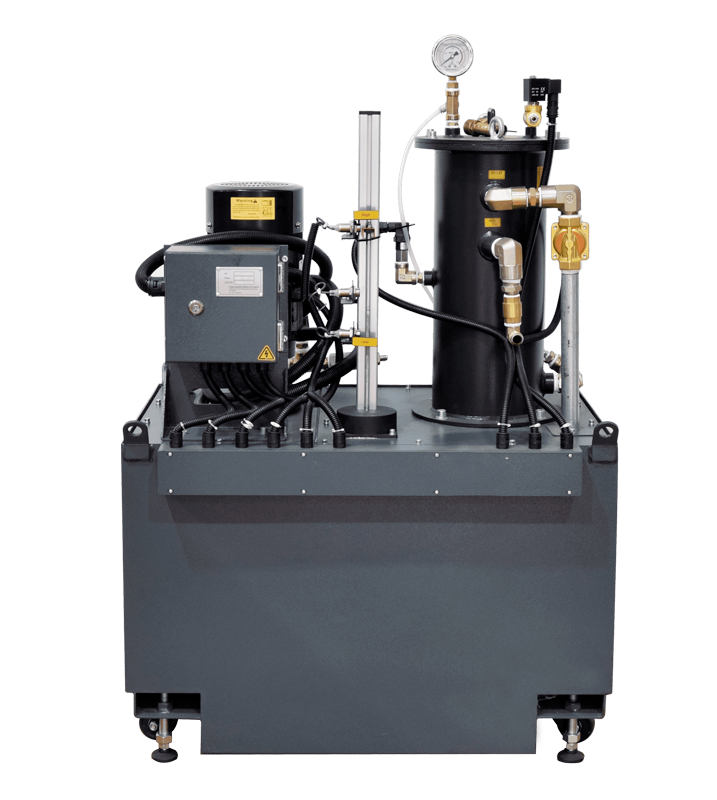

- High pressure coolant gun
- Leveling plugs
- 2 work lamps
- 1 tri-color status light
- CE marking
Data sheet
Data sheet
Characteristics | ||
Brand | VURCON | |
---|---|---|
Work table (WxL) | mm | 400x850 |
Control | FANUC 0i MF | |
X axis travel | mm | 650 |
Y axis travel | mm | 400 |
Z axis travel | mm | 500 |
Max load admitted on the work table | kg | 400 |
Spindle-table distance | mm | 100-600 |
T-slots | mm | 5-18 |
Distance between slots | mm | 100 |
Main spindle cone | BT40 | |
Column distance - spindle center | mm | 623 |
Speed range | rpm | 20-10000 |
main spindle drive | straps | |
Main engine power at S6 | kW | fifteen |
Cone balancing | G1 | |
Spindle precision | mm | ±0.008 |
Dynamic precision | mm | ±0.004 |
Standard tool holder | MSA403 BT40 | |
X axis servomotor power | kW | 1.2 |
Y axis servomotor power | kW | 1.2 |
Z axis servomotor power | kW | 2.5 |
X axis rapid feed | m/min | 48 |
Y axis rapid feed | m/min | 48 |
Z axis rapid feed | m/min | 32 |
Work progress | mm/min | 10000 |

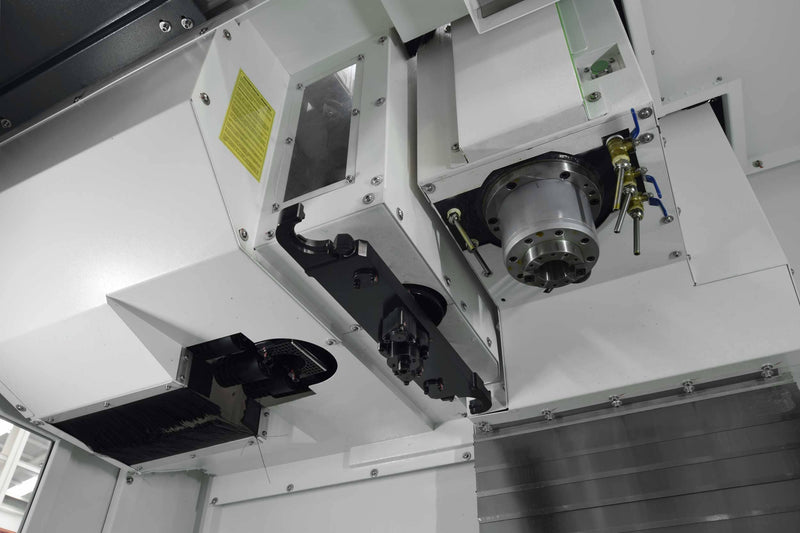

Tool magazine type | Double arm | |
Tool changer type | Random | |
Tool capacity | pc | 24 |
Day. max. of tools with adjacent tool | mm | 80 |
Day. max without adjacent tool | mm | 120 |
Max weight supported tool | kg | 8 |
Max length of tool admitted | mm | 300 |
Tire consumption | kg | 6-8 |
Electrical consumption | kva | twenty |
Required power | 380V±10% 50Hz | |
Coolant pump flow | l/min | 30 |
Optimal ambient temperature range | º | 0-40 |
Optimum ambient humidity | % | 20-80 |
Fairing type | Complete | |
X/Y/Z positioning accuracy | mm | ±0.008 |
X/Y/Z repositioning precision | mm | ±0.004 |
Dimensions | mm | 2100x2300x2700 |
Weight | kg | 4100 |
