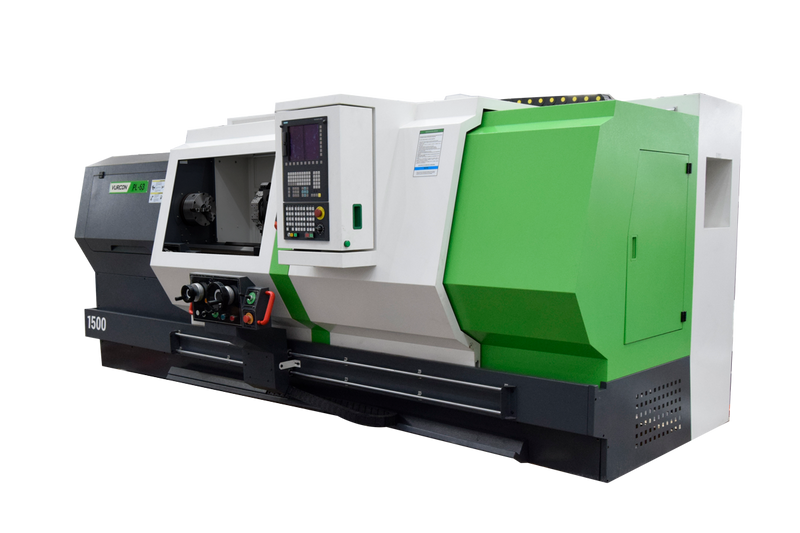

Vurcon PL-50x1500 parallel bed lathe
Ref.: PL50x1500
Max. turning diameter over bed
290
X-axis Travel
250
Main spindle speed (r/min)
2500
Standard Configuration
FAGOR 8060 ELITE-T-ICU3-jaw chuck Ø 200mm (PL36)3-jaw chuck Ø250mm (PL50)Fixed steady rest 20-130mmFixed steady rest 130-260mmMovable steady rest 2...
- Made to order
- CNC Customization
- National technical support
- 24-month warranty
Fast Shipping
Quality Guaranteed
Customized quote
Secure Payment
Ref.: PL50x1500
| Max. turning diameter over bed | 290 |
| X-axis Travel | 250 |
| Main spindle speed (r/min) | 2500 |
Standard Configuration
FAGOR 8060 ELITE-T-ICU
3-jaw chuck Ø 200mm (PL36)
3-jaw chuck Ø250mm (PL50)
Fixed steady rest 20-130mm
Fixed steady rest 130-260mm
Movable steady rest 20-80 mm
Mechanical handwheels
6-position turret (PL36)
8-position turret (PL50)
Main motor 7.5 kW (PL36)
Main motor 15 kW (PL50)
Manual tailstock/
Lubrication unit
Cooling system
Removable chip tray
Full enclosure
Designed for your workshop
Endless configuration options for every project
Numerical Control
✓ Standard
- Fagor 8060 ELITE-T-ICU - All models
+ Optional
- Fanuc - High-precision control
- Siemens - Advanced German Technology
Lubrication and Cooling
✓ Standard
- Lubrication unit - Centralized automatic system
- Cooling system - Included as standard
+ Optional
- Air conditioning in electrical panel - Advanced thermal protection
Head with C-axis
✓ Standard
- C-axis head - PL61M - Enables milling operations
Piece Tie-Down
✓ Standard
- 3-jaw chuck 200mm - PL36
- 3-jaw chuck 250mm - PL50, PL61M
+ Optional
- Hydraulic chuck - Greater clamping force and precision
Lunetas
✓ Standard
- Fixed steady rest 20-130mm - Support for small parts
- Fixed steady rest 130-260mm - Support for large parts
- 20-80mm sliding seat post - Adjustable bracket
Main Engine
✓ Standard
- 7.5 KW Motor - PL36
- 15 KW Motor - PL50
- 11 KW Motor - PL61M
Turret System
✓ Standard
- 6-position turret - PL36
- 8-position turret - PL50
- Motorized 12-position turret - PL61M
+ Optional
- 4-position horizontal turret - Special configuration
- 6-position vertical turret - Greater versatility
- Multifix quick-change turret - Maximum flexibility
Counterpoint
✓ Standard
- Manual tailstock - PL36, PL50, PL61M
+ Optional
- Hydraulic counterpoint - Greater precision and speed in positioning
Frills
✓ Standard
- Mechanical flywheels - Precision manual control
+ Optional
- Electronic steering wheel - High-precision digital control
Chip Collection System
✓ Standard
- Removable chip tray - Easy cleaning and maintenance
Parallel CNC Lathes - Specifications
Compare the features of our parallel CNC lathe models:
| Model | Bench tilt | Overturned car | Available lengths |
|---|---|---|---|
| PL36 | ⌀410 mm | ⌀220 mm | 750 / 1000 |
| PL50 | ⌀510 mm | ⌀290 mm | 750 / 1000 / 1500 / 2000 / 3000 |
| PL61M | ⌀610 mm | ⌀360 mm | 1000 / 1500 / 2000 / 3000 |
| PL63 | ⌀630 mm | ⌀340 mm | 1000 / 1500 / 2000 / 3000 |
📏 Specifications guide
Turning over on bench:
Maximum diameter that can rotate on the bedways. Defines the maximum theoretical capacity of the lathe.
Rollover onto cart:
Maximum actual machining diameter considering the cross slide. This is the practical working measurement.
Turning length:
Maximum distance between centers. Lengths greater than 1000mm require an extended bed.
💡 How to choose your model: Select based on the maximum diameter of your parts (turning over carriage) and the required length. We recommend adding a 10-15% margin for future applications.
