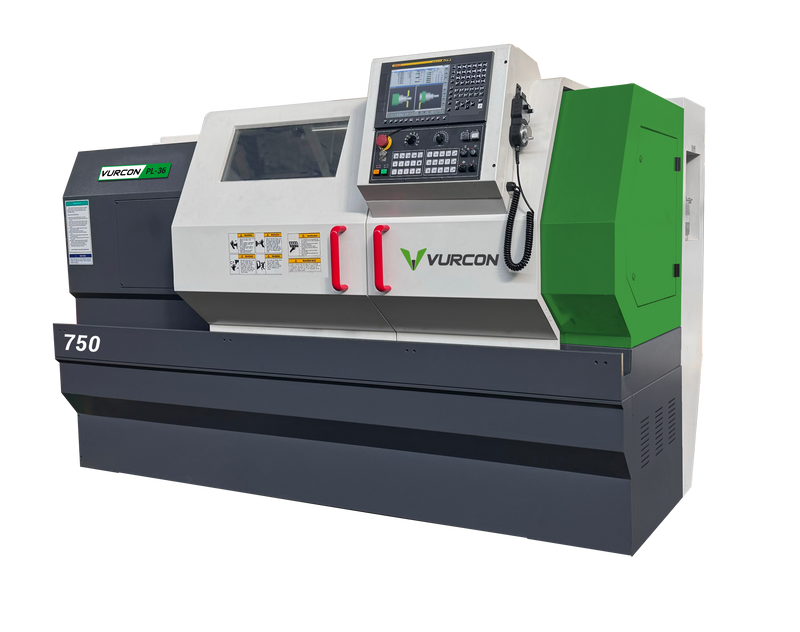

Vurcon PL-36 parallel bed lathe
Physical characteristics
Ref.: PL36
| Max diameter dump truck | 180 |
| X/Z axis travel | 150/ 550 |
| Main spindle speed | 140-3000 |
Standard configuration
- Siemens 808D ADVANCE numerical control
- 3,000 rpm main spindle
- 5.5/ 7.5 kW main motor

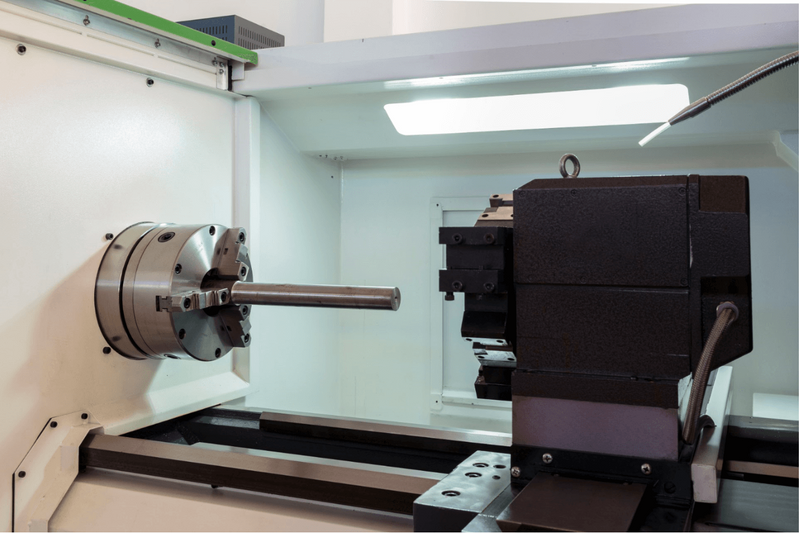

- 6 position turret

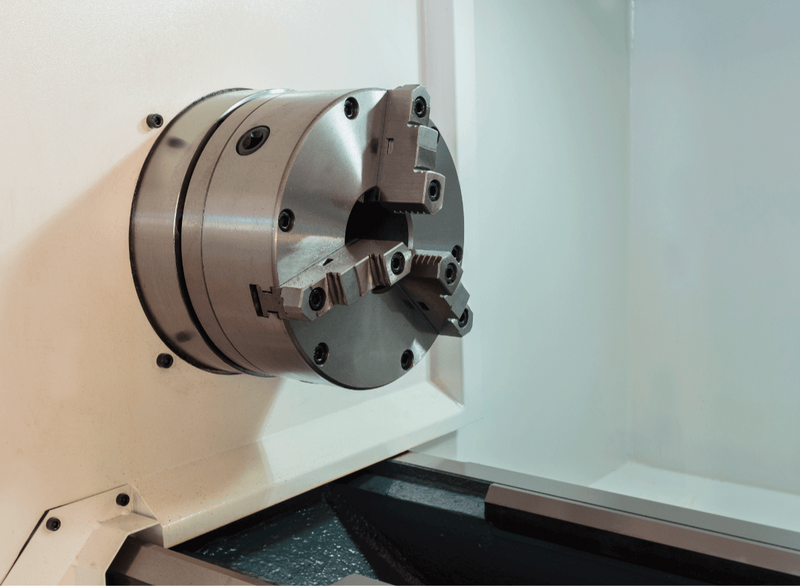

- 3-claw manual chuck
- Lubrication unit
- Cooling system using coolant
- Complete fairing
- Siemens electronic components
- CE marking
Data sheet
Data sheet
| Characteristics | ||
| X/Z axis travel | mm | 150/ 550 |
|---|---|---|
| X axis travel | mm | 150 |
| Z axis travel | mm | 550 |
| X/Z axis rapid feeds | m/min | 6/ 8 |
| Max diameter turning | mm | 360 |
| Max diameter dump truck | mm | 180 |
| Max diameter cutting | mm | 220 |
| Max length cutting | mm | 540 |
| Distance between points | mm | 690 |
| bar step | mm | ø 57 |
| Main engine power | kW | 5.5 |
| Main spindle speed | rpm | 140-3000 |
| spindle nose | ISO 702/I A2-6 | |
| tailstock diameter | mm | 55 |
| Counterpoint route | mm | 120 |
| Tailstock morse taper | MT No. 4 | |
| Dimensions (Length x width x height) | mm | 2150x1260x1600 |
| Weight | kg | 1700 |
