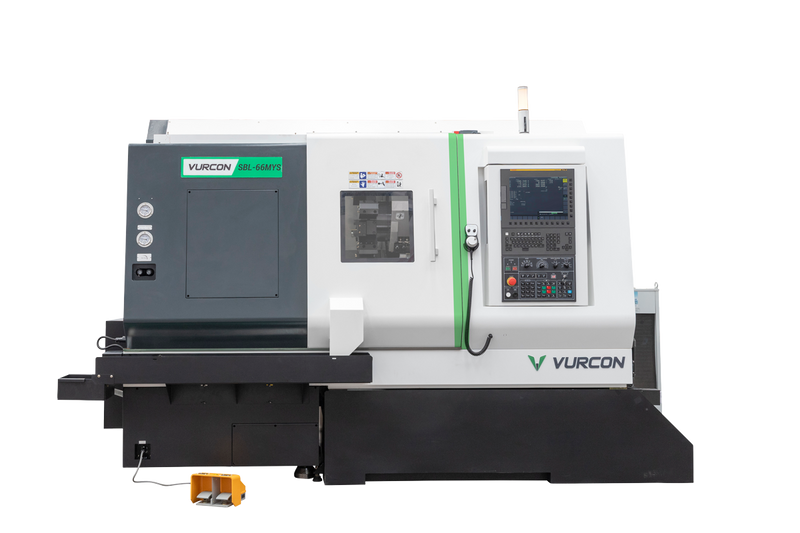

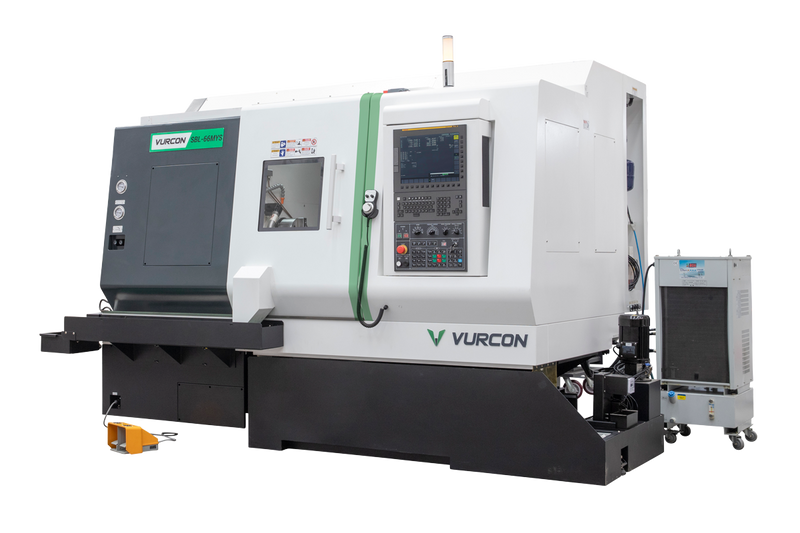

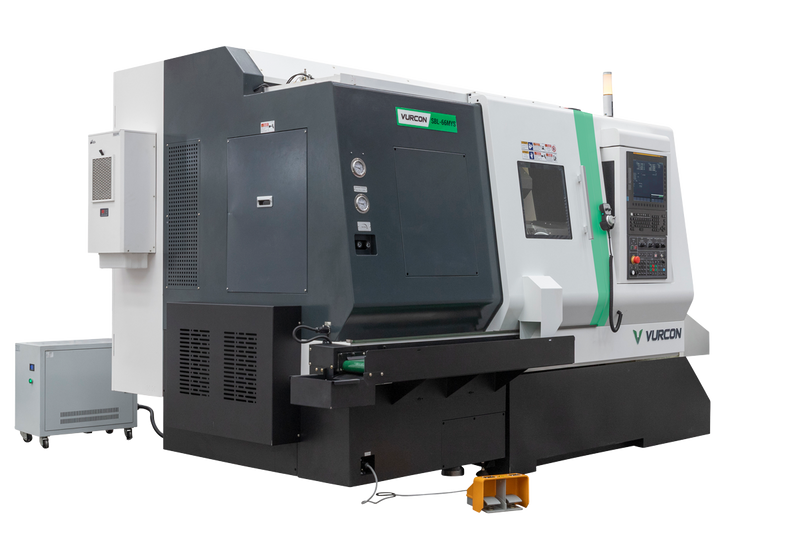

SBL66MYS inclined bed lathe

STANDARD EQUIPMENT Fanuc 0ITF PLUS Control (Type 0) 15" touchscreen Manual guide i Electronic steering wheel Air conditioning in the electrical panel 5000 rpm electrospindle type head Pontiac head 20.5 Kw BMT55 powered tool turret Tool preset Parts collec...

Made to order
CNC Customization
National technical support
24-month warranty

Fast Shipping

Quality Guaranteed

Customized quote

Secure Payment

Services

Competitive CNC.

Quality

“Machining efficiency.” Vurcon lathes and machining centers offer a significant leap forward in machining performance. Efficient machines and tools for the competitive demands of today's market.

Advice

No two customers are the same: That's why we create a Vurcon solution for each case; personalized advice is the right approach to determine which configuration best suits different machining needs.

Comprehensive service

Consulting, delivery, commissioning, and training. Cutting tools, clamping elements, programming. Everything.

Vurcon Academy

We offer a training service for customers, through intensive courses on programming and operation of the machines, as well as engineering of specific programs for Vurcon lathes and centers.

After-sales service

Installation, commissioning, and training. Until the operator is producing shavings. Expert technical department with interchangeable spare parts in stock, immediate service.

Warranty

All our Vurcon products come with a warranty and we also have spare parts in stock for immediate delivery of all components.

STANDARD EQUIPMENT

Fanuc 0ITF PLUS Control (Type 0)
15" touchscreen
Manual guide i
Electronic steering wheel
Air conditioning in the electrical panel
5000 rpm electrospindle type head
Pontiac head 20.5 Kw

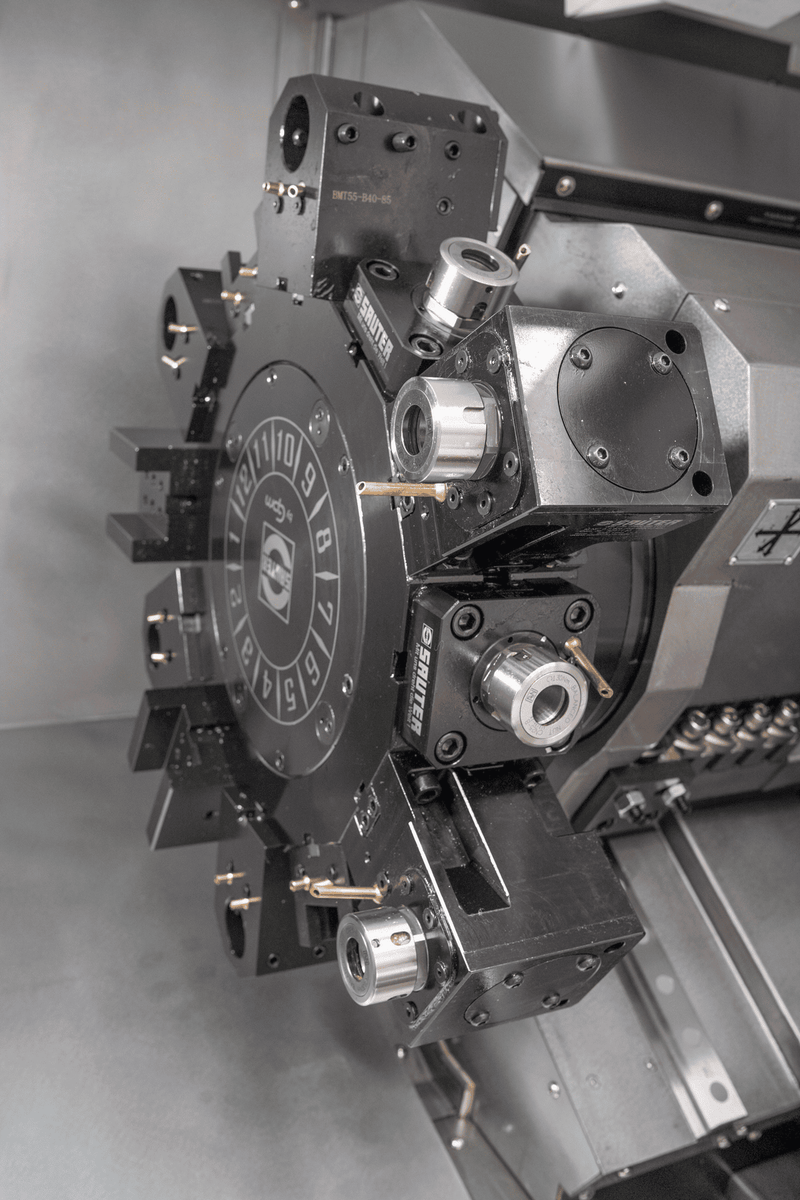

BMT55 powered tool turret
Tool preset
Parts collector
interface advances bars
Chain-type chip extractor
Refrigerant with high pressure pump 10 bar

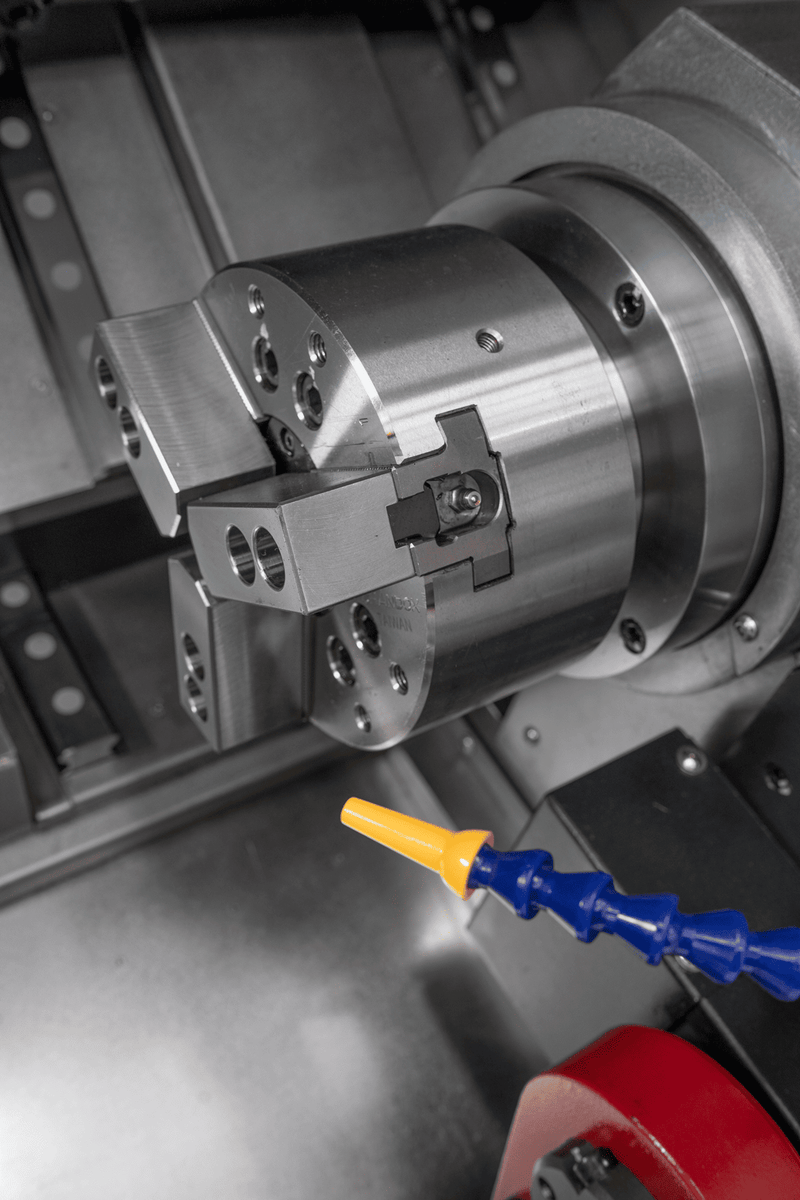

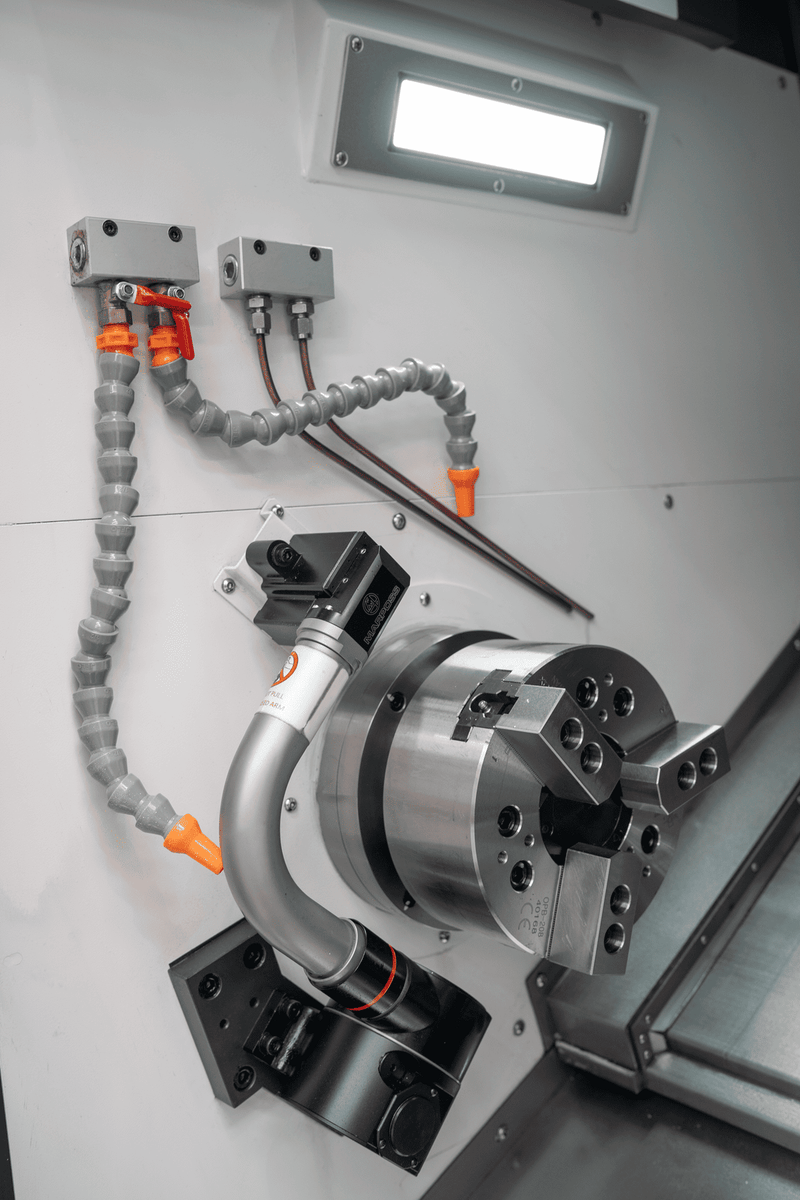

8" through hydraulic plate
6" hydraulic chuck for the sub-spindle
2 Motorized axial tool holders
2 Motorized radial tool holders
Oil/coolant separator

Request a personalized consultation

Travels on the X/Y/Z axes

Select the model according to the routes required for your application:

Model	X-axis (mm)	Y-axis (mm)	Z-axis (mm)
VL-65	650	400	500
VL-85	850	500	550
VL-106	1000	620	630
VL-116	1100	650	600
VL-127	1200	700	700
VL-147	1400	700	700
VL-157	1500	700	700
VL-158	1500	800	800
VL-178	1700	800	800

💡 Tip: Choose the model based on the maximum size of the workpiece you will be machining. Consider adding a 10-15% safety margin to your current requirements.
