Choosing a computer numerical control (CNC) milling machine is a strategic decision that directly impacts the production capacity, accuracy, and profitability of a machine shop. With the diverse technologies available, understanding the different types of CNC milling machines is the first step toward making a smart investment that aligns with your business objectives. The right choice depends not only on the geometry of the parts but also on production volume, materials, and your company's growth strategy.

At Vurcon, we understand that every workshop faces unique challenges. Therefore, our goal is to be the competitive partner that guides you through this technological landscape, ensuring you acquire the machinery with the best value for money to boost your production.

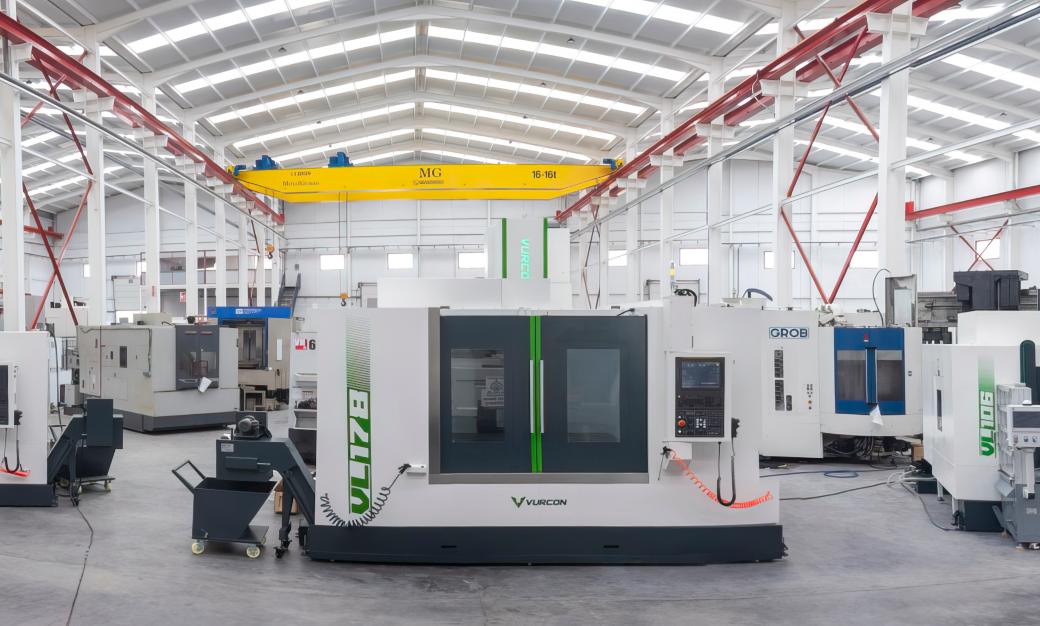

Main types of CNC milling machines

The most fundamental classification of CNC milling machines is based on the orientation of their spindle, the key component that holds and rotates the cutting tool. This configuration determines how the machine interacts with the workpiece and defines its suitability for different applications and production strategies. Below, we explore the most common types in the industry.

Vertical CNC Milling Machine

The vertical CNC milling machine, also known as a vertical machining center (VMC), is the most common and recognizable configuration in the industry. In these machines, the spindle is oriented vertically , and the cutting tool moves up and down along the Z-axis.

This design is exceptionally versatile and ideal for jobs requiring high precision on one or two sides of the workpiece, such as the manufacture of molds, dies, or flat components. Due to their more compact design and generally lower acquisition cost, vertical machining centers are an accessible entry point to the world of CNC for small and medium-sized workshops, as well as for prototyping departments. They represent an investment in Flexibility and adaptability , perfect for handling a wide variety of parts in small batches.

Horizontal CNC milling machine

In a horizontal CNC milling machine or horizontal machining center (HMC), the spindle is oriented parallel to the worktable . These machines are designed from the ground up for high productivity and automation, forming the backbone of mass production in sectors such as automotive.

One of its most significant advantages is gravity chip evacuation . With the spindle horizontal, chips fall naturally from the cutting zone, improving surface finish, tool cooling, and extending tool life. Structurally, they are more rigid, allowing for more aggressive and deeper cuts, and are often integrated with automatic pallet changer (APC) systems for continuous, unattended production. An HMC is an investment in performance and economies of scale.

Universal CNC Milling Machine

Universal milling machines, often associated with turret milling machines, are characterized by superior flexibility. Their main distinguishing feature is a head that can tilt and rotate at different angles, allowing the workpiece to be approached not only vertically or horizontally, but also at intermediate angles.

This capability makes them extremely versatile machines , ideal for prototype manufacturing, repairs, tooling, and very short production runs where the configuration is constantly changing. Although their rigidity and level of automation are lower compared to pure VMC or HMC machines, their adaptability is unmatched for unique jobs requiring complex machining in a single clamping.

Characteristics of each type of CNC milling machine

To better visualize the differences, it is helpful to compare the key characteristics that define the application and performance of each type of milling machine:

• Vertical Machining Center (VMC):

• • Main application: Ideal for flat parts, molds, dies, and work done primarily on one side. Excellent for small batches and prototypes.

  • Productivity: Efficient for quick setup jobs, but less optimized for continuous mass production.

  • Chip evacuation: Chips tend to accumulate on the workpiece, which may require cleaning and can affect the finish.

  • Cost and space: Lower initial investment and they occupy less floor space, making them more accessible.

• Horizontal Machining Center (HMC):

• • Main application: Designed for the mass production of cubic or multifaceted components, such as engine blocks or housings.

  • Productivity: Maximum performance thanks to automation (pallet changers) and unattended machining capability.

  • Chip evacuation: Excellent. Gravity helps keep the cutting area clean, improving the quality and life of the tool.

  • Cost and space: They require a larger initial investment and more physical space.

• Universal milling machine (Turret type):

• • Main application: Prototypes, repairs, tool rooms and unique parts with complex angles.

  • Productivity: Lower than dedicated machining centers due to its more manual and less rigid nature, not suitable for mass production.

  • Flexibility: Unbeatable. The ability to tilt the head allows for machining complex geometries without the need for special tooling.

  • Cost and space: Generally, the most economical and compact option.

How to choose the right type of CNC milling machine?

Selecting the right CNC milling machine is an investment in the future of your workshop. The decision should be based on a clear analysis of your current and future needs. Consider the following key criteria:

• Part complexity and size: Are your parts mostly flat or do they require multi-sided machining? For 2.5D geometries, a VMC is often sufficient and cost-effective. For cubic parts that need machining on multiple sides, an HMC can dramatically reduce setup times.

• Production volume: Do you work with prototypes and short runs or with mass production? For high variety and low volume, the flexibility of a VMC is ideal. For high-volume production where cost per piece is critical, the automation and efficiency of an HMC is the strategic choice.

• Material to be machined: Machining hard steels or titanium requires a high-rigidity machine, a feature where HMCs and fixed-bed VMCs excel. For softer materials like aluminum, spindle speed may be more important than extreme rigidity.

• Required accuracy: While all CNC machines offer high precision, eliminating manual repositioning on a 4th axis HMC minimizes the risk of cumulative errors, ensuring greater repeatability within tight tolerances.
