Vurcon PL-50B x2000 Flat bed lathe

Vurcon PL-50B x2000 Flat bed lathe

Ref.: PLM50 x 2000

Descargar ficha técnica

Spindle Speed	3500

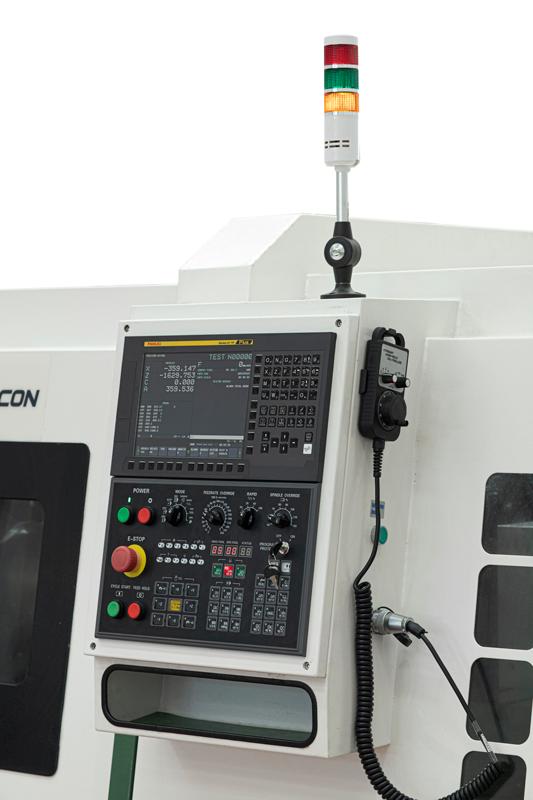

Available CNC controllers	FANUC 0iTF

See full technical specs

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Vurcon PL-50B x2000 Flat bed lathe (DUPLICADO 164659)

Characteristics
Brand		VURCON
Version		2000
X axis travel	mm	280
Z axis travel	mm	2000
Max. gyration dia.	mm	260
Distance between centers	mm	2000
Rod diameter	mm	52
Spindle motor power	kw	11/ 15
Spindle Speed	rpm	3500
Nose end os spindle		A2-6
Knife tower capacity		12
Axis stroke	mm	100
Dimensions (L x W x H)	mm	3400x1600x2010
Machine weight	Kg	5300

Standard configuration

FAGOR 8060-FL-T (PPU240)
Electronic handwheels
Manual 3-jaw chuck 250mm.
Manual tailstock
Main spindle (2.500 rpm)
Automatic lubrication unit
Coolant cooling system
Work area light
Three-colour machine status light
Air conditioning in control panel
Full fairing
CE marking
